Fiber–To–The–Home (FTTH) Network Infrastructure:
Fiber to the home (FTTH) is the deployment and utilization of optical fiber cables from a central point (Gram Panchayats / Blocks) directly to individual buildings, such as government offices / hospitals / educational institutes / residences / apartment buildings, etc for provisioning high-speed connectivity. With the use of light signals, optical fiber transmits data to achieve greater performance. FTTH encompasses a range of PONs, splitters and PTP Ethernet-based solutions. This technology offers higher speeds of connectivity, which are many more times significantly faster than old type cable modems or DSL (Digital Subscriber Line) connections.
PONs are commonly utilized in FTTH implementations due to their cost-effectiveness and superior performance. The network topology of PONs typically consists of an optical line terminal (OLT) situated at GP / Block level, optical network terminals (ONTs) located at the end-user’s premises, and an optical distribution network (ODN) positioned between the OLT and ONT. The ODN serves to split and distribute the signal travelling along the PON.
PONs are commonly utilized in FTTH implementations due to their cost-effectiveness and superior performance. The network topology of PONs typically consists of an optical line terminal (OLT) situated at GP / Block level, optical network terminals (ONTs) located at the end-user’s premises, and an optical distribution network (ODN) positioned between the OLT and ONT. The ODN serves to split and distribute the signal travelling along the PON.
Terasoft works on implementation of multiple hybrid projects for Roll out of FTTH Networks across the States provisioning Triple Play utilities such as Internet, Telephone and Television on single fiber cable to every household.
We offer FTTH services conducting survey and supplying the optical fiber cable and its accessories, installing and commissioning of multi-core optical fiber cable on the existing power distribution poles. The fiber would be linked to the Customer Premise Equipment (CPE) located in the offices/residences. The CPE would be installed and commissioned, and the fiber laid from the point of presence (PoP) to the CPE would be tested to ensure the successful commissioning of the last mile connectivity to the Government offices/residences, etc.
We offer FTTH services conducting survey and supplying the optical fiber cable and its accessories, installing and commissioning of multi-core optical fiber cable on the existing power distribution poles. The fiber would be linked to the Customer Premise Equipment (CPE) located in the offices/residences. The CPE would be installed and commissioned, and the fiber laid from the point of presence (PoP) to the CPE would be tested to ensure the successful commissioning of the last mile connectivity to the Government offices/residences, etc.
Our FTTH solutions include:
- Supply of GPON Boxes with 1Gbps link with Wi-fi enabled
- Supply of IPTV boxes with OTT features
- GPON boxes with SIP Interface for Telephone connection
- Laying of Last Mile Optical fiber and termination to the Enterprise and Household connections
- Design of Last Mile splitting and Optical Power design
Last Mile Connectivity enables:
- Enterprise Connections G2G: Integration of services like Networking, VPN connectivity, Surveillance products, etc.
- B2B services to Banks, ATMs, Mobile Operators: One can leverage the Network potentials – ISP licence holders.
- G2C End Customers – IPTV: Local cable operators to extend fiber and maintain services
We provision supply and installation of CPEs (GPON / IPTV Boxes) to offer services such as Triple Play – internet, telephone, IPTV or CATV & other Value added services through Fiber Network to the households, government offices (Departments/schools/hospitals), etc…

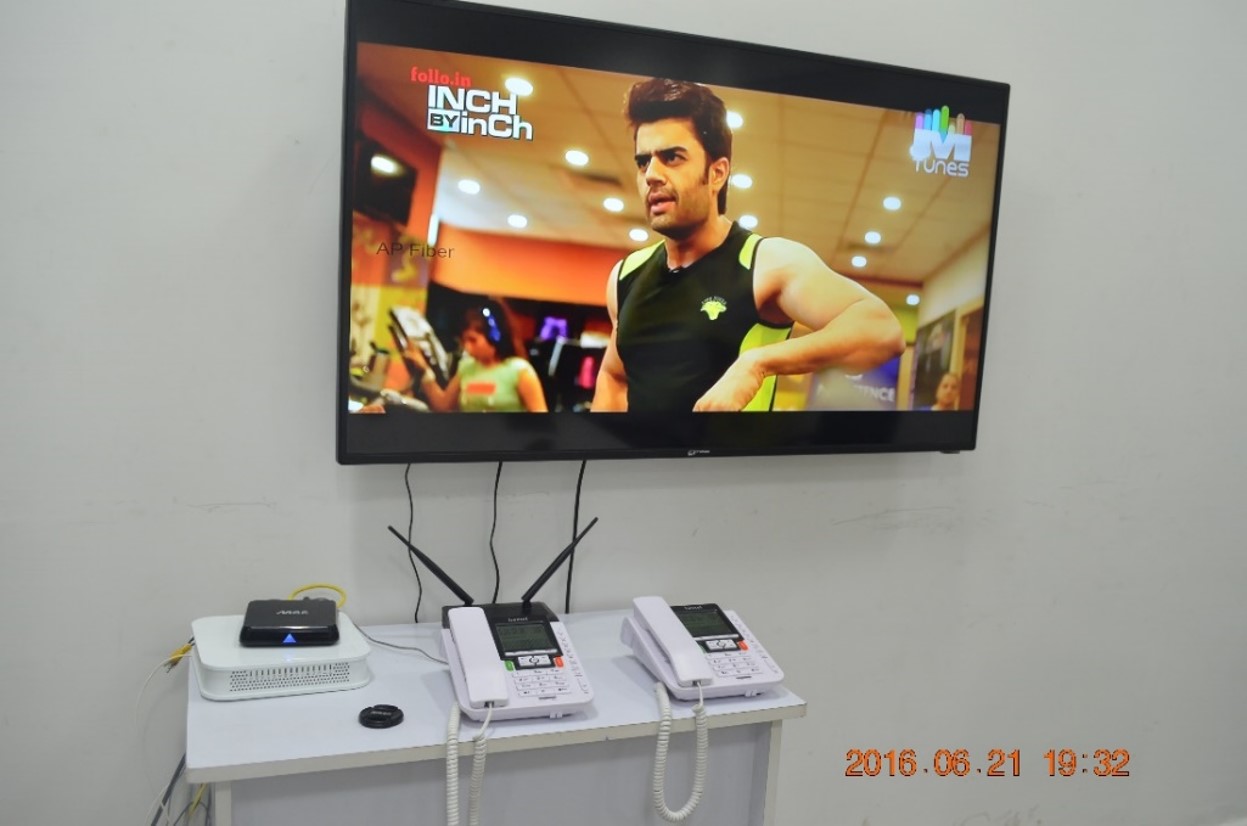

IPTV Connectivity Features:
- Internet browsing on TV without additional computer
- Accessibility to Government Apps
- Announcement of Social welfare benefits
- Video conferencing interface to citizens
- e-Learning at Home
- Access to Doctor on Call service
- Accessible to content related to Agriculture
- Feel good survey conduct
Benefits of using FTTH
FTTH offers numerous advantages such as:
- Increased performance of the network,
- Higher speeds over longer distances, which was previously unattainable with old technologies,
- Improved performance for high-definition video streaming on applications like YouTube, etc.
Success Stories:
- Laid 15,000 Kms of (2F / 12F) Optical Fiber cable and provided Last mile connectivity from A.P. Fiber Network PoPs to Government offices / institutions / hospitals / educational institutes, etc..
- Supplied 60,000 GPON Boxes & 300,000 IPTV Boxes to Andhra Pradesh state.
